Production capacity: 1.9-76 t/h
Volume weight: 3.2-120 t
Application materials: Chemical industry, mining, metallurgy etc. such as ore, sand, fly ash, sawdust, slag, coal, metal powder, clay, kieselguhr, kaolin, coconut shell, palm shell, etc..
Zhongde Heavy Industries Co., Ltd. China(Mainland)

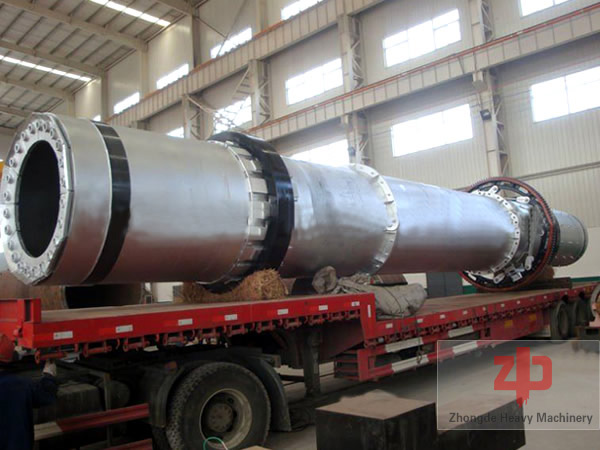

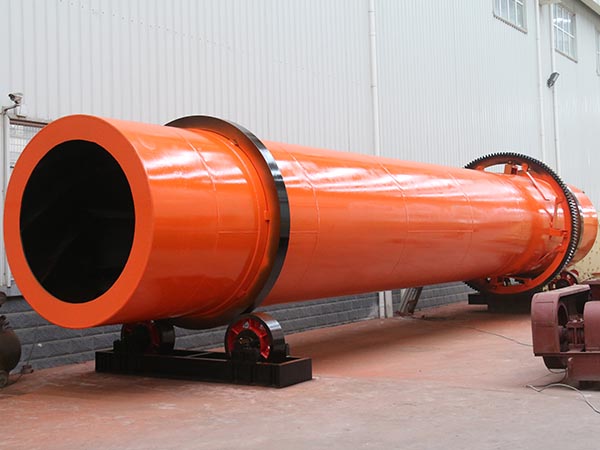

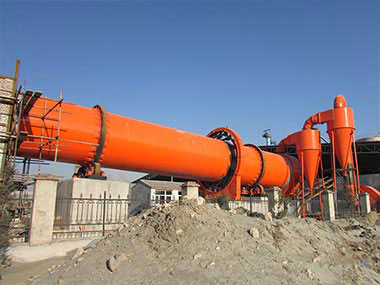

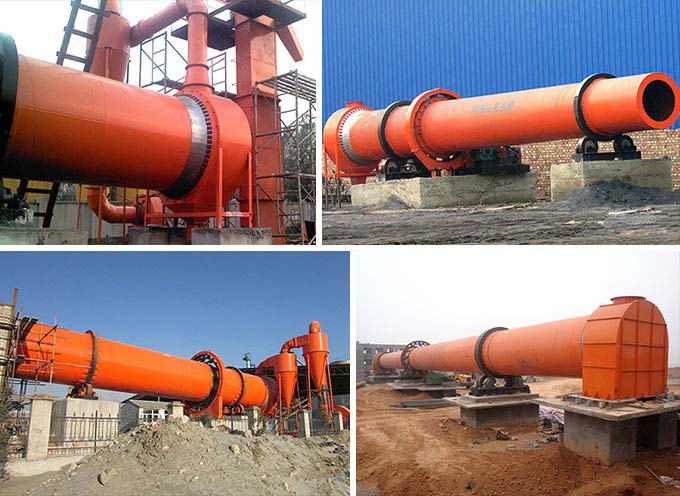

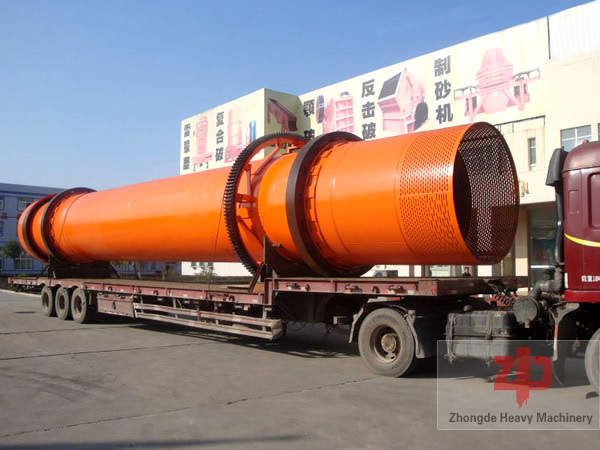

Rotary dryer is widely applied in mining, metallurgy, building materials, chemistry and other industries, mainly used for drying materials with some moisture and granularity, like mineral powder, slag, clay, limestone, lignite and so on.
Advantates:
1.Compact structure, reliable operation
2.Reasonable layout, good drying effect
3.Low energy consumption
4.High thermal efficiency
5.Customized for every application
6.Low outlet temperature, long service life
7.Automation control reduces the operating personnel, saving labor resources
8.Small basis investment, which is only half of the same production monocular dryer
.jpg)
Working principle:

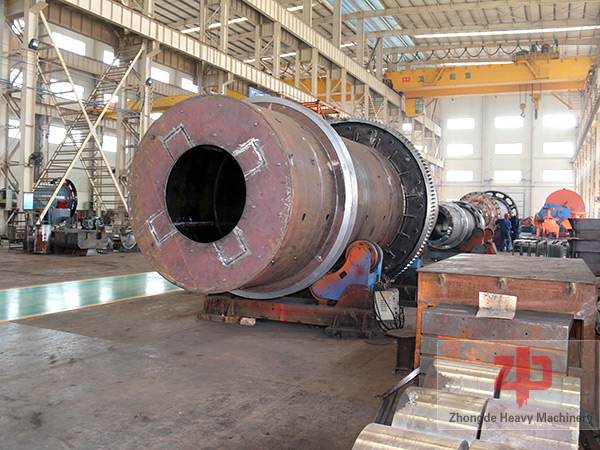

Rotary dryer is made up of cylinder, lifting plate, transmission, supporting devices and others. Based on reasonable layout and alternate angle-change equally spaced in cylinder, the lifting plate scatters the wet material inside rotating cylinder. Hot air flow turns water into steam letting into air, and aimed dry material is achieved.
Note :
1. please specify transmission arrangement when placing an order.
2. Production capacity in above table (G) is calculated by primary material moisture (W1):20%, final moisture (W2):5% and evaporation intensity for unit volume (A) 40~50kg water per M3 on hour; production capacity will change with relevant materials and working conditions.
|
Spec./m
(Dia.×Length） |
Shell Cubage
（m³） |
Capacity
（t/h） |
Installation
Obliquity （%） |
Highest Inlet
Air Temperature （℃） |
Main Motor
（kw) |
Weight
（t） |
|
Φ1.2×8.0
|
9.0
|
1.9～2.4
|
3～5
|
700～800
|
7.5
|
9
|
|
Φ1.2×10
|
11.3
|
2.4～3.0
|
3～5
|
700～800
|
7.5
|
11
|
|
Φ1.5×12
|
21.2
|
4.5～5.7
|
3～5
|
700～800
|
15
|
18.5
|
|
Φ1.5×14
|
24.7
|
5.3～6.6
|
3～5
|
700～800
|
15
|
19.7
|
|
Φ1.5×15
|
26.5
|
5.7～7.1
|
3～5
|
700～800
|
15
|
20.5
|
|
Φ1.8×12
|
30.5
|
6.5～8.1
|
3～5
|
700～800
|
18.5
|
21.5
|
|
Φ1.8×14
|
35.6
|
7.6～9.5
|
3～5
|
700～800
|
18.5
|
23
|
|
Φ2.2×12
|
45.6
|
9.7～12.2
|
3～5
|
700～800
|
22
|
33.5
|
|
Φ2.2×14
|
53.2
|
11.4～14.2
|
3～5
|
700～800
|
22
|
36
|
|
Φ2.2×16
|
60.8
|
13.0～16.2
|
3～5
|
700～800
|
22
|
38
|
|
Φ2.4×14
|
63.3
|
13.5～16.9
|
3～5
|
700～800
|
37
|
45
|
|
Φ2.4×18
|
81.4
|
17.4～21.7
|
3～5
|
700～800
|
37
|
49
|
|
Φ2.4×20
|
90.4
|
19.3～24.1
|
3～5
|
700～800
|
45
|
54
|
|
Φ2.4×22
|
99.5
|
21.2～26.5
|
3～5
|
700～800
|
45
|
58
|
|
Φ2.6×24
|
127.4
|
27.2～34.0
|
3～5
|
700～800
|
55
|
73
|
|
Φ3.0×20
|
141.3
|
30.1～37.7
|
3～5
|
700～800
|
75
|
85
|
|
Φ3.0×25
|
176.6
|
37.7～47.1
|
3～5
|
700～800
|
75
|
95
|
|
Φ3.2×25
|
201
|
42.9～53.6
|
3～5
|
700～800
|
90
|
110
|
|
Φ3.6×28
|
285
|
60.8～76.0
|
3～5
|
700～800
|
160
|
135
|
Technical parameters of indirect heat dryer:
| Shell diameter ×shell Length Items |
Inside diameter of outer shell （mm） |
Inside diameter of inner shell （mm） |
Shell Length （m） |
Shell cubage （m³） |
Shell obliquity |
Lifting blade form |
Highest inlet air temperature （℃） |
Dimensions （m） |
| Φ1.5×15m | 1500 | 500 | 15 | 20.27 | 3-5% | Lifting form | 850 | 16.2×2.7×2.7 |
| Φ1.5×17m | 17 | 22.97 | 18.2×2.7×2.7 | |||||
| Φ1.5×19m | 19 | 25.68 | 20.0×2.9×2.9 | |||||
| Φ1.8×21m | 1800 | 650 | 21 | 35.91 | 3-5% | Lifting form | 850 | 22.5×2.7×2.7 |
| Φ1.8×23m | 23 | 39.33 | 24.5×2.9×2.9 | |||||
| Φ1.8×25m | 25 | 42.75 | 26.5×2.9×2.9 | |||||
| Φ2.2×21m | 2200 | 800 | 21 | 58.10 | 3-5% | Lifting form | 850 | ---- |
| Φ2.2×23m | 23 | 63.61 | ||||||
| Φ2.2×25m | 25 | 69.15 |
