Feeding sizes: ≤15-≤25mm
Production capacity: 0.6-52 t/h
Applicable materials: Limestone, calcite, calcium carbonate, dolomite, barite, talc, gypsum, diabase, quartz, bentonite, etc.
Applications: Calcium carbonate crushing and processing, gypsum powder processing, power plant desulfurization, non-metallic mineral milling, and pulverized coal preparation.
Zhongde Heavy Industries Co., Ltd. China(Mainland)

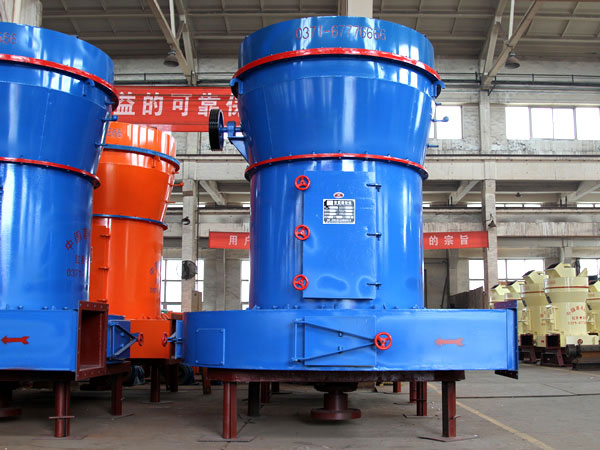

Through the special device added in the machine, it can produce 30-80 mesh of coarse powder. High-strength Mill is also called High-efficiency Mill, Hanging- roller mill or Ore Grinding Equipment.
Advantages of High Strength Grinding Mill:
1. Three-dimensional structure, small occupied area, strong quality of complete sets. It is an independent production system from the block material to the finished powder.
2. Uniform-fineness finished powder, 99% screening rate, which is difficult for other milling equipments to possess.
3. The gearing adopts a closed gearbox and pulley which transmit smoothly, and operates reliably .
4. All important parts adopt high-quality steel, and all wear-resistant parts adopt high-performance wear-resistant materials. The whole machine operates reliably with high –performance wear-resisting property.
5. The electrical system adopts centralized control, the milling workshop can basically achieve unmanned operation, and it is easy to maintain.
| Parameter Model |
Raymond mill62 | High strength66 | High strength76 | High strength87 | High strength92 | High strength93 | High strength97 | Raymond mill4119 | Raymond mill4525 |
| Feeding size（mm） |
<15 | <15 | <20 | <25 | <25 | <25 | <25 | ≤25 | ≤30 |
| Size of finished product（mm） |
0.173-0.033 | 0.173-0.033 | 0.173-0.033 | 0.173-0.033 | 0.173-0.033 | 0.173-0.033 | 0.173-0.033 | 0.173-0.044 | 0.173-0.044 |
| Shift output of different material fineness(t) |
0.6-9 | 1-20 | 1.5-25 | 2.8-33 | 3-36 | 3.5-40 | 4-52 | 8-78 | 16-176 |
| Rotate speed of central shart（r/min） |
274 | 190 | 170 | 161 | 148 | 140 | 130 | 105 | 82 |
| Diameter of pulverizing ring（mm） |
525 | 725 | 850 | 907.5 | 973 | 1006 | 1050 | 1400 | 1770 |
| Diameter of pulverizing ring（mm） |
150 | 210 | 250 | 270 | 300 | 300 | 310 | 410 | 450 |
| Height of pulverizing roller（mm） |
100 | 150 | 150 | 150 | 160 | 160 | 170 | 190 | 250 |
| Main Motor | 7.5 | 15 | 18.5 | 22 | 30 | 30 | 37 | 75 | 132 |
| Fan Motor | 4-5.5 | 4-11 | 4-15 | 4-18.5 | 4-22 | 2-22 | 4-37 | 4-75 | 4-132 |
| Analyzer Motor | 6-1.1 | 6-2.2 | 6-2.2 | 6-2.2 | 6-2.2 | 6-3 | 4A-5.5 | 4B-7.5 | 4A-18.5 |
