Conveying length: ≤10-40m
Belt width: 500-1600mm
Conveying capacity : 78-2195t/h

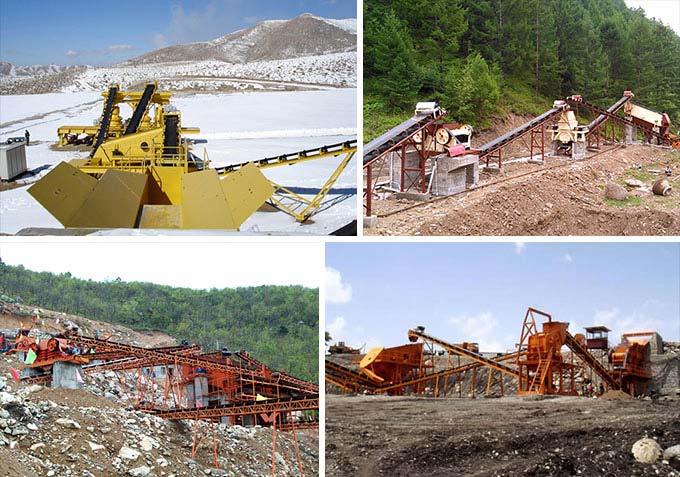

Application range: Quarry, mining, metallurgy, ore dressing, coal mining and other industries.
Zhongde Heavy Industries Co., Ltd. China(Mainland)
2. The conveyor width ranges from 50 cm to 120 cm, conveying speed is 1.3-2.0 m/s, and the throughput is 78-1284 t/h.It can also be modified according to customer needs.
1. The conveyor that our company produces can carry all kinds of materials economically and efficiently. In industrial production, the belt conveyor can be used as a form continuous production link between production machinery and equipment, in order to realize the continuity of production and automation, improve productivity and reduce labor intensity.
2. The conveyor belt according to the principle of friction drive and movement, large conveying quanity , long transport distance, stable transport, there is no relative movement between material and conveyor , low noise, simple structure, convenient maintenance, less energy consumption, standardization of components, so it is widely used in mining, metallurgical, chemical, casting, building materials industries , transportation , production line , production departments, hydropower station ,construction site and port.
3. Belt conveyor can be used in the environment temperature from 20℃ to + 40℃, the temperature of the conveying material is under 50℃.
| Belt width(mm) | Conveying length(m) Power(kw) |
Conveying speed(m/s) | Conveying amount(t/h) | ||
| 400 | ≤10 3 |
12-15 3-4 |
15-30 4-7.5 |
1.25-2.0 | 30-60 |
| 500 | ≤10 3 |
12-15 4-5.5 |
15-30 5.5-7.5 |
1.25-2.0 | 40-80 |
| 650 | ≤10 4 |
12-15 7.5 |
15-30 7.5-11 |
1.25-2.0 | 80-120 |
| 800 | ≤10 4 |
12-15 7.5 |
15-30 7.5-15 |
1.25-2.0 | 120-200 |
| 1000 | ≤10 5.5 |
10-20 7.5-11 |
20-40 11-22 |
1.25-2.0 | 200-320 |
| 1200 | ≤10 7.5 |
10-20 7.5-15 |
20-40 15-30 |
1.25-2.0 | 290-480 |
| 1400 | ≤10 11 |
10-20 15-22 |
20-40 22-45 |
1.25-2.0 | 400-680 |
| 1600 | ≤10 15 |
10-20 22-30 |
20-50 30-75 |
1.25-2.0 | 600-1080 |
| 1800 | ≤10 18.5 |
10-20 30-45 |
20-50 45-110 |
1.0-2.0 | 800-1500 |
| 2000 | ≤10 22 |
10-20 45-55 |
20-50 55-132 |
1.0-2.0 | 1000-2000 |
| 2400 | ≤10 30 |
10-20 55-75 |
20-50 75-185 |
1.0-2.0 | 1500-3000 |
