Production Capacity: 90–500t/h
Feeding Size: 480–750mm
Output Size: 65–200 mm
Composition: a set of crushing and screening equipments including primary crushing, secondary crushing, screening plant,belt conveyor, etc.
Zhongde Heavy Industries Co., Ltd. China(Mainland)

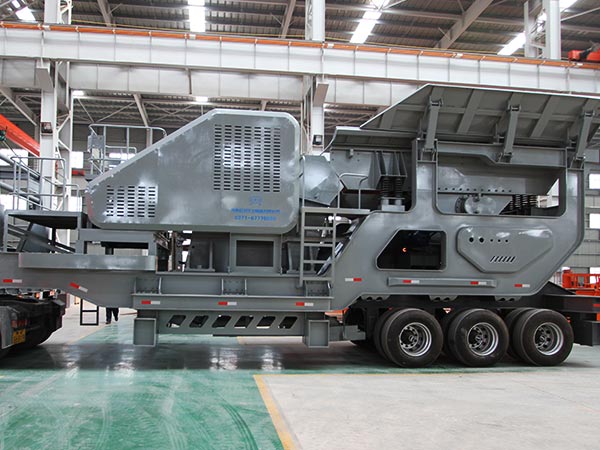

Concrete is commonly used building materials. It refers to the cement concrete with cement as cementitious materials, sand and stone as the aggregate, and mixed with water by a certain proportion. And It is the good raw materials for construction. Therefore, with the high hardness and compressive strength of concrete, crushing concrete is a problem. The mobile concrete crusher is a kind of mobile crusher with good crushing effect and specially for concrete. It is the main equipment of the concrete processing and smashing production line. With strong mobility, , low production costs, and high return on investment, it is an integration of crushing, feeding, screening, transport. So it is popular and widely used.
Mobile concrete crusher is an integration of the material receiving, crushing, transmission and other process equipments. The optimization of the process makes it has excellent performances like rock crushing, aggregate production, open-air mining crushing. The combination of different models can form a powerful crushing operation line to complete processing operations with multi need.
The adoption of all-wheel drive can realize pivot steering, standard configuration, quick change of device, which make it easy for ordinary road driving, and more convenient for driving on the rugged and harsh road in crushing sites.
Mobile concrete crusher can do the first line on-site crushing to material, eliminating the middle link where materials are transported away from the site for crushing, which greatly reduces the costs of materials transport.
Mobile concrete crusher has re-optimized design on the basis of the original. With power units, it has perfect function of security protection, which is especially suitable for the narrow site and complex areas.
As more and more customers invest and purchase mobile concrete crusher, its manufacturers are numerous. At present there are many manufacturers of mobile concrete crusher in the market, so that the customers don’t know which to choose and cooperate. Zhong Company is a manufacturer who actually has strength and holds power. Hongxing Machinery is a manufacturer specialized in producing mobile crusher. The crushers of our company have reliable quality, stable performance, economical and affordable price, so it wins the customers’ favorite.
Model | ZD938HD80 | ZD1149HD98 | ZD1349HD110 | ZD1349HD125 |
Trasportation Length(mm) | 12600 | 13500 | 14500 | 15200 |
Trasportation Width(mm) | 2600 | 2700 | 2800 | 2900 |
Trasportation Height(mm) | 3870 | 4200 | 4450 | 4500 |
Maximum Length(mm) | 12500 | 14000 | 16100 | 16700 |
Maximum Width(mm) | 4100 | 4500 | 5100 | 5100 |
Maximum Height(mm) | 4100 | 4900 | 5000 | 5300 |
Weight(t) | 39 | 57 | 55 | 65 |
Tire Configuration | Dualaxial | Triaxial | Triaxial | Triaxial |
Jaw Crusher | HD80 | HD98 | HD110 | HD125 |
Maximum Feeding Size(mm) | 500 | 550 | 660 | 800 |
Discharge Opening Size(mm) | 50-150 | 75-175 | 100-200 | 125-225 |
Capacity(t/h) | 85-275 | 110-350 | 215-510 | 280-650 |
Vibtrating Feeder | ZSW380×95 | ZSW420×110 | ZSW490×130 | ZSW490×130 |
Main Belt Converyor | B800×8.5M | B1000×9.5M | B1000×11M | B1200×11M |
Side-Opening Belt Converyor(Optional) | B500×3M | B650×3.5M | B650×4M | B650×4M |
Genset(Optional)(kw) | 200 | 250 | 270 | 400 |
Iron Separator(Optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 |
