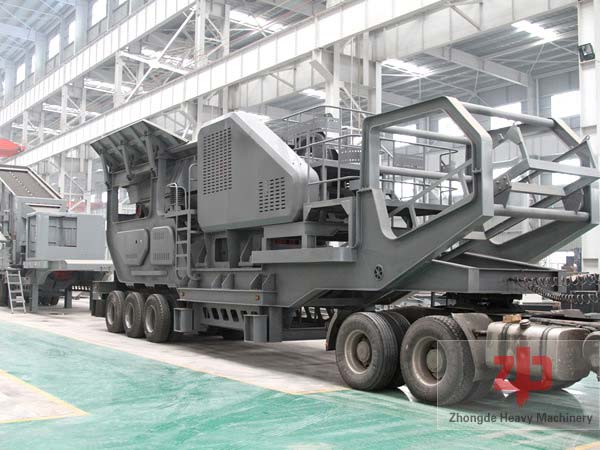

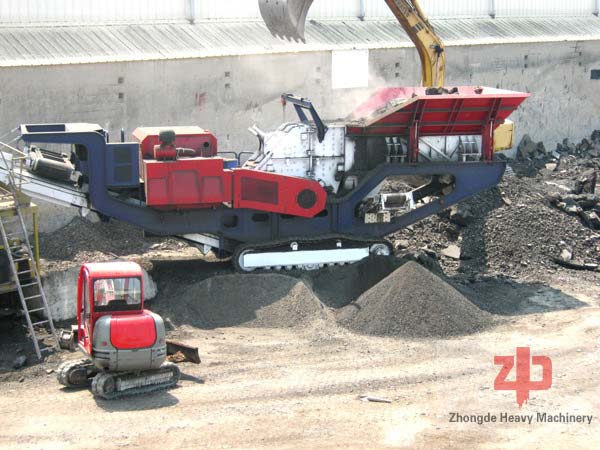

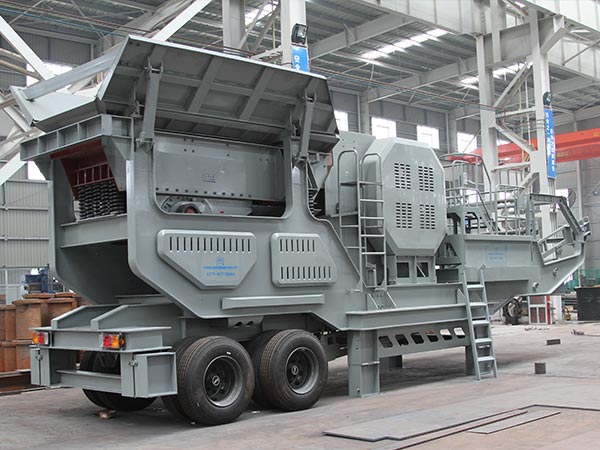

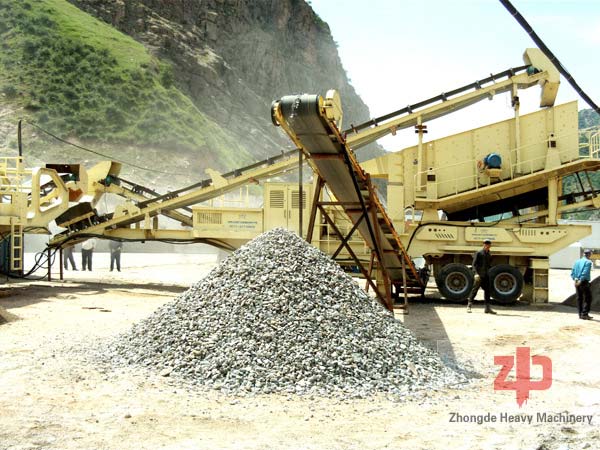

Construction Waste Recycle Mobile Crusher

FOB Reference Price: Get Latest PriceGet Latest Price

Production capacity: 50–650 t/h

Feeding size: 350-800 mm

Output size: 65–200 mm

Applications: urban construction waste, water conservancy and hydropower, mineral processing, ceramics,etc.

Trade Assurance

Zhongde Heavy Industries Co., Ltd. China(Mainland)

Product Introduction

The emergence of construction waste mobile crusher eliminates the need for transportation of materials, which can save a large amount of transportation costs. For some areas where the crushing site is small and the operating environment is not convenient, the mobile building crusher has a very good crushing effect. The cost of a whole set of purchase cost is much cheaper than the purchase price of a single device.

When users purchase the equipment, the company will help to select machines based on the user's local stone raw material type and the production and finished product requirements of the specific circumstances of the equipment to select the configuration. The specific selection of several broken sieve system needs to be selected according to the user's processing needs.

Performance characteristics

1. It can be moved, and it is not necessary to carry out the transportation of materials. It can be directly driven to the site playing a very important role in the treatment and reuse of urban construction waste.
2. High degree of integration, the raw materials are processed to the required finished products, and the overall production efficiency is high and the cost of consumption is low.

3. The technology of mobile building waste crusher is more mature, the procurement cost is lower and lower, the progress of science and technology makes the equipment more efficient and cost saving.
4. Low overall transport costs, the cost of "turning waste into treasure" is lower, and the equipment is directly driven to the construction waste site for processing.
5. The economic and social benefits of mobile construction waste crushers are incalculable and will be strongly supported by the state.

Technical Data

Model ZD938HD80 ZD1149HD98 ZD1349HD110 ZD1349HD125
Trasportation Length(mm) 12600 13500 14500 15200
Trasportation Width(mm) 2600 2700 2800 2900
Trasportation Height(mm) 3870 4200 4450 4500
Maximum Length(mm) 12500 14000 16100 16700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dualaxial Triaxial Triaxial Triaxial
Jaw Crusher HD80 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge Opening Size(mm) 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibtrating Feeder ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Converyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-Opening Belt Converyor(Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset(Optional)(kw) 200 250 270 400
Iron Separator(Optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
