Feeding size: 300-700mm
Processing capacity: 20-250t/h
Applied material: limestone, granite, marble, basalt, iron ore, river pebbles, shale, bluestone, coal, pebbles, construction waste.
Zhongde Heavy Industries Co., Ltd. China(Mainland)

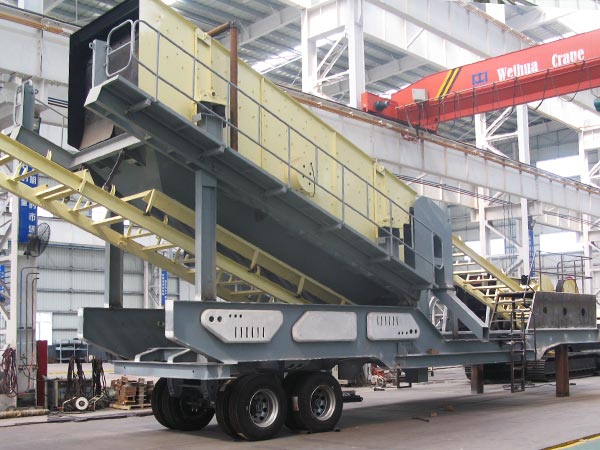

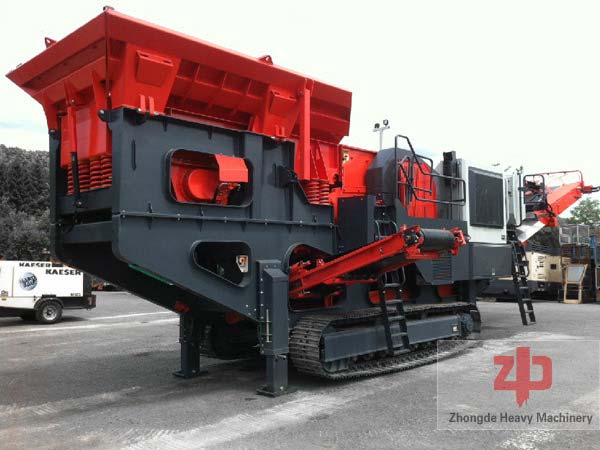

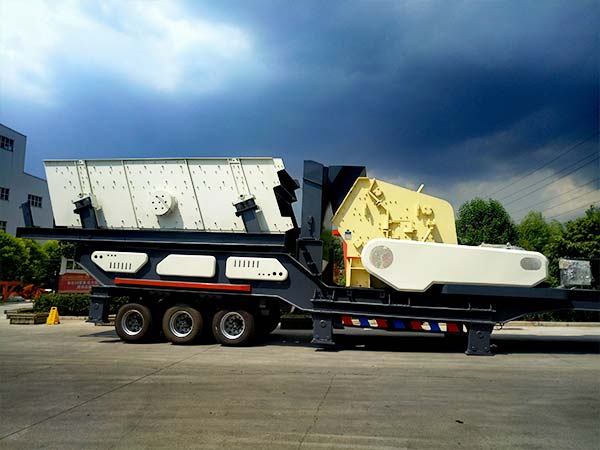

Mobile Crushing and Screening Plant is a high efficiency screening crushing equipment, using self-drive, advanced technology, full-featured. In any terrain conditions, the equipment can reach any workplace, with high production efficiency, finished material particle size uniform.

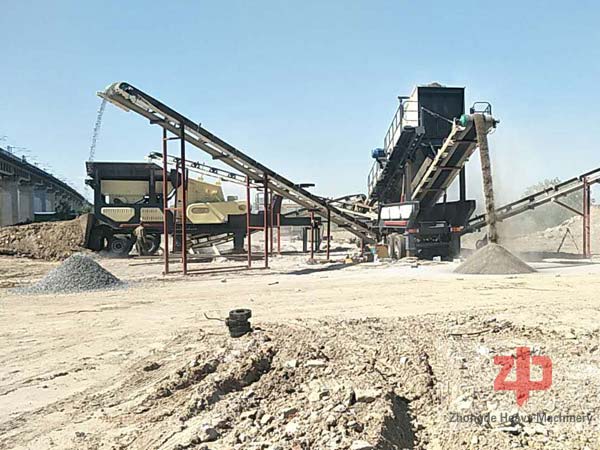

Applicable to construction waste disposal, mobile crushing operations in mining area , also widely used in hydropower, highways, artificial sand stone, ore broken and so on
1, the customer can choose "screen after the broken" or " broken after the screen" to meet product requirements, but also by increasing the return conveyor, to achieve closed and open conversion, increase the use of equipment.
2, a body, model general, feeding unit swap system, screening unit swap system, its efficiency and production capacity are better than the same level or fixed screening station.
3, set by the feeding material, screening, transmission and other process equipment as a whole, through the combination of different models to form a strong crushing screening operations line to complete the needs of more processing operations.
Model | ZD3S1848 | ZD3S1860 | ZD3S2160 |
Transportation Length(mm) | 10280 | 11480 | 11480 |
Transportation Width(mm) | 2830 | 2830 | 3150 |
Transportation Height(mm) | 4350 | 4350 | 4350 |
Maximum Length(mm) | 11100 | 11800 | 11800 |
Maximum Width(mm) | 3600 | 3600 | 3970 |
Maximum Height(mm) | 6000 | 6000 | 6500 |
Weight(t) | 16 | 18 | 19 |
Tire Configuration | biax fitted | biax fitted | biax fitted |
Vibrating Screen | 3YZS1848 | 3YZS1860 | 3YZS2160 |
