Mobile Jaw Crusher
Production Capacity: 85-650t/h
Max Input Size: 500-800mm
Facility weight: 39-65t
Material: stone,rocks,pebble,basalt limestone, granite, quartz, concrete, dolomite, slag, iron ore, copper ore, gold ore, etc.
Product Introduction

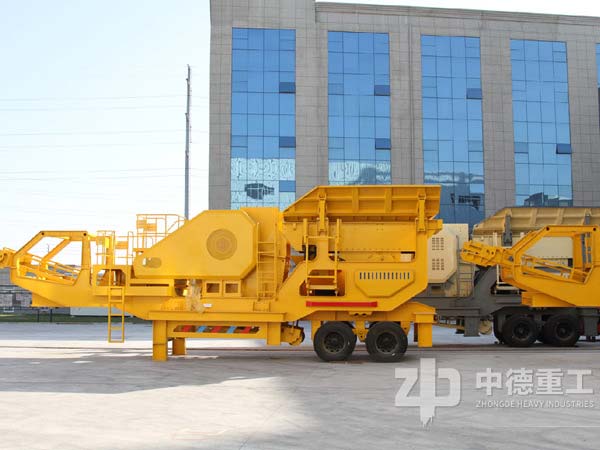

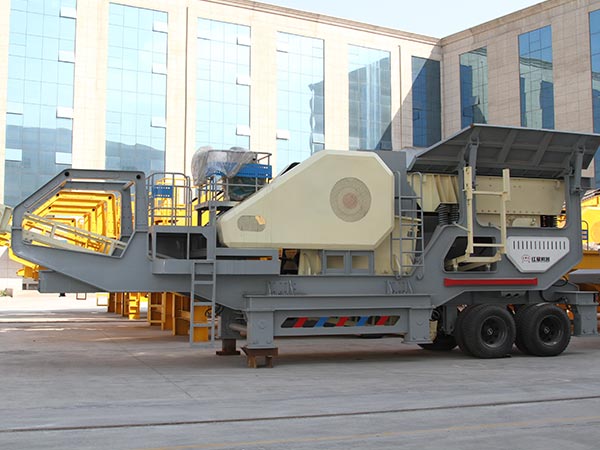

Mobile Jaw Crusher,a mobile crushing machine made of jaw crusher and mobile equipment, is equilivent to a small scale crushing plant. At present,it is widely applied to disposal construction waste in urban demolition and process mobile broken stone.There are two types for choice: tyre-type mobile jaw crusher and crawler mounted mobile jaw crusher. According to clients' requirements,we will supply different specification mobile jaw crusher with more strong mobility and maneuverability.
Product Application

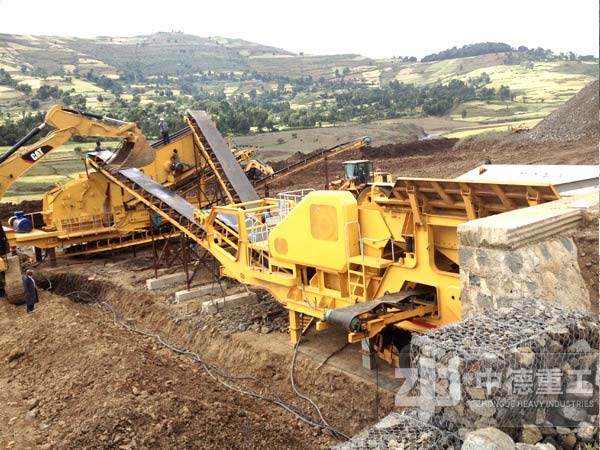

1.Mobile Jaw Crusher is widely used for recycling use of mining, coal, garbage and construction waste and site operations of earthwork and rock work, urban infrastructure,roads and construction sites.
2.processing topsoil and other materials; using in separating viscous aggregates; applying to building and blasting industry; in sieving after crushing; in quarrying industry.
3.in river pebbles, limestone, granite, basalt,diabase,andesite,ore tailings, artificial sand
Performance Characteristics
1. Well-adapted: high chassis, small turning radius,easy to drive on a common road and more convenient operation on crushing site than ordinary machines even in rugged road environment
2. Saving materials transportation costs: fast to enter site work and directly crush stones and transfer materials
3. High Automation: control system enclosure can be configured with advanced touch screen control and PLC control system to achieve start, process adjustment, error alarm, fault safety alert, electrical control operation
4. Reasonable Structure: the whole machine adopts fashionable design and mechanical structure optimization is reasonable and compact, which provides simple, low cost and characteristic combination for the whole crushing process.
.jpg)
Technical Data
| Model |
ZD938HD86 |
ZD1149HD98 |
ZD1349HD110 |
ZD1349HD125 |
| Transportation Length(mm) |
12600 |
13500 |
14500 |
15200 |
| Transportation Width(mm) |
2600 |
2700 |
2800 |
2900 |
| Transportation Height(mm) |
3870 |
4200 |
4450 |
4500 |
| Maximum Length(mm) |
12500 |
14000 |
16100 |
14700 |
| Maximum Width(mm) |
4100 |
4500 |
5100 |
5100 |
| Maximum Height(mm) |
4100 |
4900 |
5000 |
5300 |
| Weight(t) |
39 |
57 |
55 |
65 |
| Tire Configuration |
Dual-axial |
Dual-axial |
Dual-axial |
Dual-axial |
| Jaw Crusher |
HD86 |
HD98 |
HD110 |
HD125 |
| Maximum Feeding Size(mm) |
500 |
550 |
660 |
800 |
| Discharge Opening Size(mm) |
50-150 |
75-175 |
100-200 |
125-225 |
| Capacity(t/h) |
85-275 |
110-350 |
215-510 |
280-650 |
| Vibrating Model |
ZSW380×95 |
ZSW420×110 |
ZSW490×130 |
ZSW490×130 |
| Main Belt Conveyor |
B800×8.5M |
B1000×9.5M |
B1000×11M |
B1200×11M |
| Side-opening Belt conveyor(Optional) |
B500×3M |
B650×3.5M |
B650×4M |
B650×4M |
| Genset(Optional) (kw) |
200 |
250 |
270 |
400 |
| Iron Separator (Optional) |
RCYD(C)-8 |
RCYD(C)-10 |
RCYD(C)-10 |
RCYD(C)-12 |
