Tertiary Impact Crusher

FOB Reference Price: Get Latest PriceGet Latest Price

Production capacity: 5-270t/h

Feeding size: <120-<190mm

Output size: 0-10mm

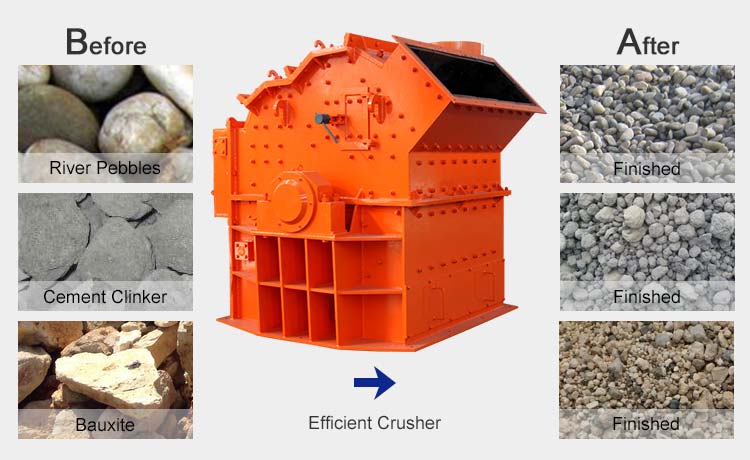

Materials: river pebbles, granite, basalt, limestone, cement clinker, quartz stone, iron ore, bauxite and so on.

Trade Assurance

Zhongde Heavy Industries Co., Ltd. China(Mainland)

Product Introduction

1.Being widely used, the performance of high efficiency fine crusher has reached the advanced level. It is the effective, practical and reliable crushed stone machine,especially suitable for producing abrasive, fire-proof material, cement, quartz sand, steel grit, slag powder, copper ore, iron ore, gold ore, concrete aggregate,asphalt aggregate finely with a variety of hard and brittle materials.

2. The crusher is a kind of high efficiency and energy saving crusher, 50% energy saving than the traditional fine crusher.It is currently the world's advanced fine crusher equipment.



The performance characteristics:

1. Reliable operation, long life

The tertiary impact crusher is stable and reliable. It has advantages of simple process and structure, convenient maintenance, large production capacity,long life of hammer head USES.

2. High production capacity and low maintenance cost

1)The investment in the Tertiary Impact Crusher is 35% to 50% less than the investment of the  traditional process equipment, and the output efficiency is same of the traditional process equipment.

2)Running maintenance costs in the long run is also 35% to 50% less than the traditional process equipment. It is widely used in the production of high quality stone materials in the fields of sand stone material, high grade highway, railway, water conservancy, airport, construction, cement, steel resistance, metallurgy and so on.

Technical Data

PXJ tertiary impact crusher
Rotorø×Width
(mm)
Specification
800×400
800×600
800×800
1010×1010
1200
×1200
1400
×1400
1600
×1600
1800
×1800
Feed opening size(mm)
400×185
500×250
550×300
1000×350
1200
×450
1500
×500
1600
×550
1800
×800
Feeding size (mm)
<120
<180
<180
<180
<180
<190
<190
<190
Discharging size (mm)
0-10
0-10
0-10
0-10
0-10
0-10
0-10
0-10
Adjustable range of discharge opening (mm)
5-50
5-50
5-50
5-50
5-50
5-50
5-50
5-50
Cement Clinker(t/h)
10-30
1040
20-45
25-55
35-90
50-150
85-210
125-270
Limestone(t/h)
18-45
23-55
28-65
35-75
45-110
50-150
95-260
140-310
Power(kw)
4P   37KW
4P   45KW
4P   45KW
4P   55KW
6P   110KW
6P   160KW
4P   250KW
4P   315KW
Theoretical weight 3.9 4.5 6 10.5 14.4 22 35 49.7
