Maximum feed size: 1500-800 mm
Processing capacity: 80-650 t/h
Material: stone,rocks,pebble,basalt limestone, granite, quartz, concrete, dolomite, slag, iron ore, copper ore, gold ore, etc.
Zhongde Heavy Industries Co., Ltd. China(Mainland)

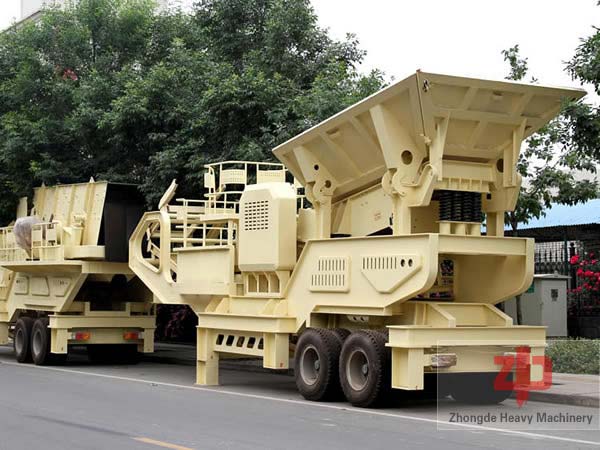

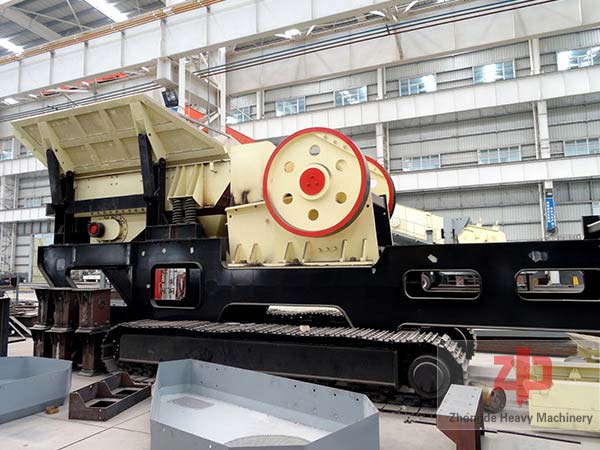

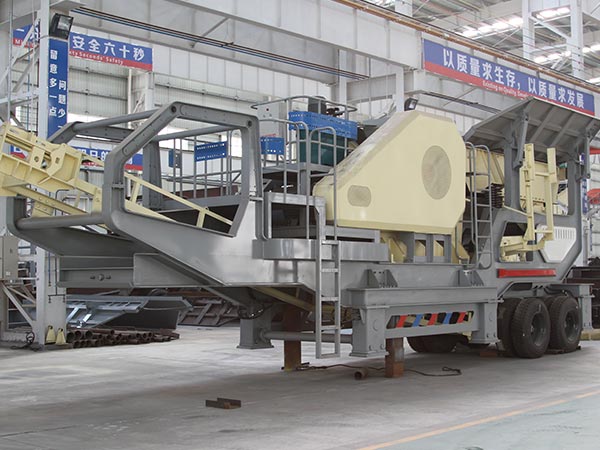

Portable Crusher develops a series of rock and construction waste crushing equipment based on the new concept of material handling. Designed with treadmill movement, the car chassis is high, the turning radius is small, easy for ordinary road driving, more convenient in the crushing area rugged road environment.

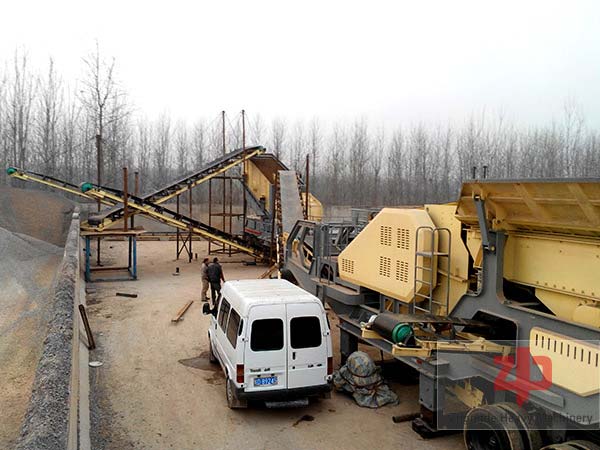

Portable Crusher saves time for the fast stationed in the site , more conducive to stationed in the construction of a reasonable area, to provide a more flexible operating space for the overall crushing process.It can crush the material on-site firstly , eliminating the middle part of the deal (the material from the scene and then broken), greatly reducing the cost of transport of materials.
1, Portable Crusher is a highly efficient crushing equipment, using self-drive, advanced technology, full-featured.
2, with excellent mobility and operating platform adaptability, without the need for fixed crushing station installed in place before the various pre-prepared, to complete the adjust of station in a short time , at any time into the working state.
3,It can reduce the handling of materials operations, and facilitate the coordination of all auxiliary machinery and equipment. By means of wireless remote control, the crusher can be easily opened to the trailer and transported to the workplace.
Model | ZD938HD80 | ZD1149HD98 | ZD1349HD110 | ZD1349HD125 |
Trasportation Length(mm) | 12600 | 13500 | 14500 | 15200 |
Trasportation Width(mm) | 2600 | 2700 | 2800 | 2900 |
Trasportation Height(mm) | 3870 | 4200 | 4450 | 4500 |
Maximum Length(mm) | 12500 | 14000 | 16100 | 16700 |
Maximum Width(mm) | 4100 | 4500 | 5100 | 5100 |
Maximum Height(mm) | 4100 | 4900 | 5000 | 5300 |
Weight(t) | 39 | 57 | 55 | 65 |
Tire Configuration | Dualaxial | Triaxial | Triaxial | Triaxial |
Jaw Crusher | HD80 | HD98 | HD110 | HD125 |
Maximum Feeding Size(mm) | 500 | 550 | 660 | 800 |
Discharge Opening Size(mm) | 50-150 | 75-175 | 100-200 | 125-225 |
Capacity(t/h) | 85-275 | 110-350 | 215-510 | 280-650 |
Vibtrating Feeder | ZSW380×95 | ZSW420×110 | ZSW490×130 | ZSW490×130 |
Main Belt Converyor | B800×8.5M | B1000×9.5M | B1000×11M | B1200×11M |
Side-Opening Belt Converyor(Optional) | B500×3M | B650×3.5M | B650×4M | B650×4M |
Genset(Optional)(kw) | 200 | 250 | 270 | 400 |
Iron Separator(Optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 |
